£0 Air Source Heat Pump Installation in Blackford

In the rural community of Blackford, Perthshire, an oil-heated property faced the common dilemma of volatile fuel prices and an aging heating setup. After being told by previous contractors that a modern heat pump installation was technically impossible, the homeowner reached out to RCA Plumbing & Heating through the Microgeneration Certification Scheme (MCS) database. By conducting detailed room-by-room heat loss calculations and designing around low flow temperatures, our team proved that clean heating was not only achievable but exceptionally cost-effective.

The solution involved installing a compact, ultra-quiet Vaillant aroTHERM plus 3.5kW air source heat pump integrated alongside the property’s existing solar PV array, solar thermal setup, and GivEnergy battery storage system. The entire installation totalled £8,750, which was fully covered by the Home Energy Scotland rural grant, resulting in an upfront cost of exactly £0 to the customer.

Executive Summary

This project successfully replaced an inefficient oil boiler in Blackford with an MCS-certified 3.5kW Vaillant aroTHERM plus heat pump integrated with solar and battery infrastructure. Supported by an £8,750 Home Energy Scotland rural grant, the homeowner secured a £0 upfront installation. The tailored setup eliminates dependency on fluctuating heating oil deliveries and provides near-zero running costs throughout the warmer months.

Key Project Highlights

• Location: Blackford, Perthshire (Rural Central Scotland)
• Previous Heating: Inefficient domestic oil boiler system
• New Technology Installed: Vaillant aroTHERM plus 3.5kW Air Source Heat Pump
• Integrated Renewables: Solar PV array, Solar Thermal collector, and GivEnergy Battery Storage
• Total Installation Invoice: £8,750
• Grant Funding Awarded: £8,750 (100% covered via Home Energy Scotland Grant & Rural Uplift)
• Net Upfront Out-of-Pocket Cost: £0

A common misconception across Perthshire and Forth Valley is that heat pumps cannot replace oil systems in older or rural properties. Many contractors dismiss viable homes because they rely on oversized rules of thumb rather than true heat loss engineering. As Scotland’s Heat Geek accredited installers, RCA Plumbing & Heating designs every system using precise thermal loss data.

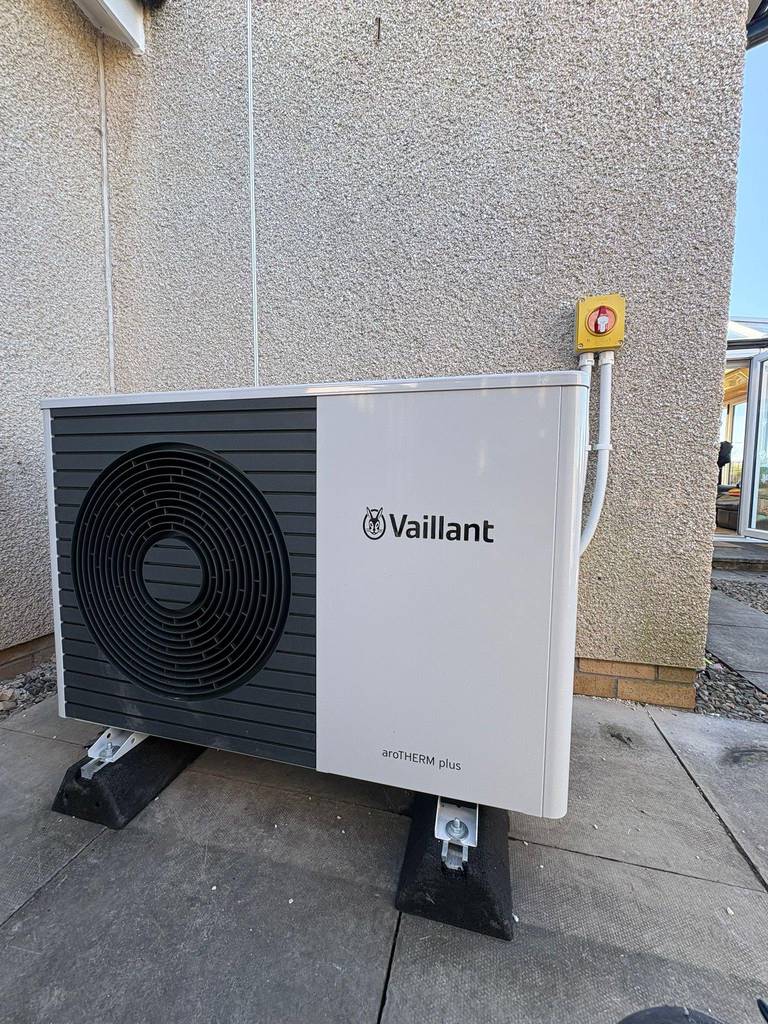

For this Blackford home, accurate sizing revealed that a compact 3.5kW Vaillant aroTHERM plus unit was ideal. By designing the hydraulic system to run at lower flow temperatures, the heat pump operates at peak seasonal efficiency (SCOP), providing steady, comfortable warmth while keeping electricity demand exceptionally low.

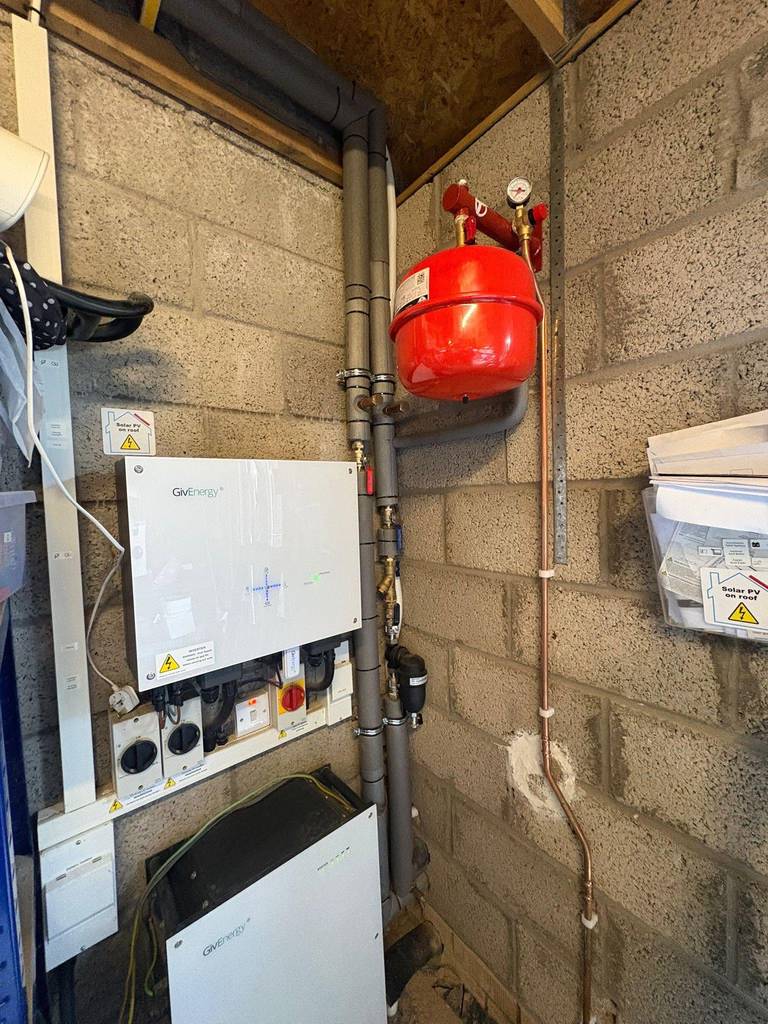

Modern home heating reaches maximum performance when renewable technologies work together. This property already featured on-site solar generation, allowing us to build an intelligent, interconnected clean energy setup:

• Solar Thermal: Provides domestic hot water directly from solar energy during sunny periods.
• Solar PV & GivEnergy Battery: Stores excess daytime solar power to run the heat pump and household appliances during the evening.
• Vaillant aroTHERM plus: Uses natural R290 refrigerant to deliver high water flow temperatures efficiently while running on self-generated green electricity.

Heading into the spring and summer months, this combined ecosystem creates a setup where the homeowner enjoys virtually zero heating and hot water bills.

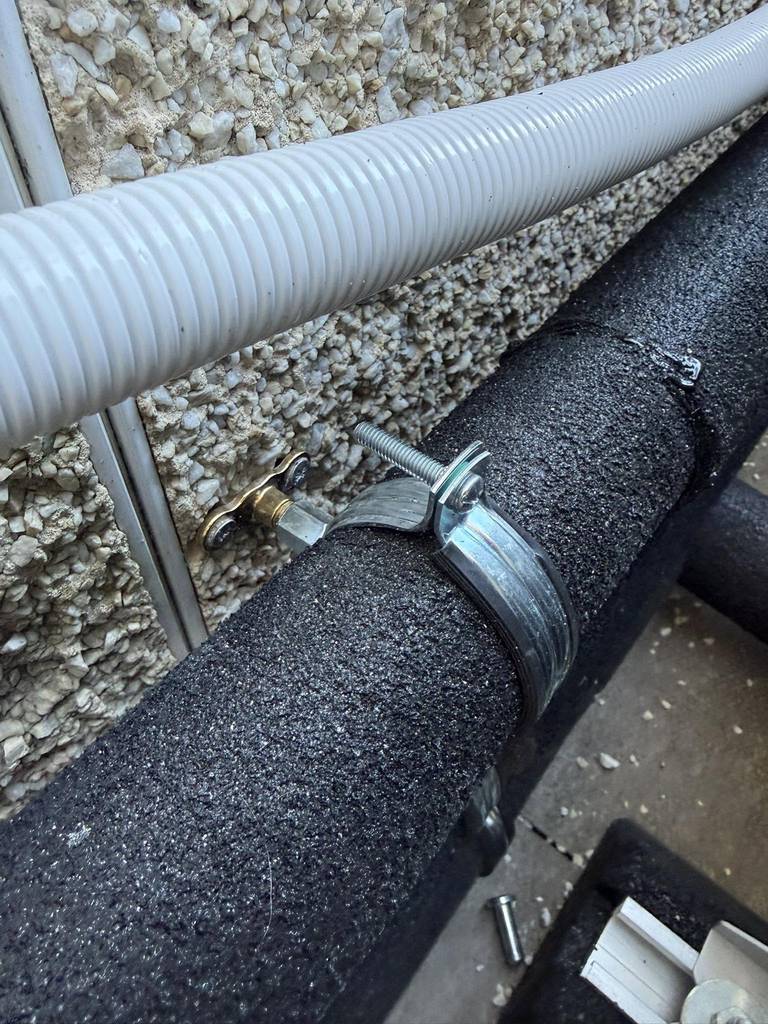

High efficiency relies on meticulous pipework and thermal protection. As shown in our detailed installation imagery, all external flow and return pipework is fitted with heavy-duty, weatherproof insulation and secure anti-vibration bracketry to stop heat loss in harsh winter weather.

Every internal junction, expansion vessel, and magnetic filter is systematically laid out to ensure straightforward future servicing and long-term reliability. Explore more of our completed projects in our heating and heat pump case studies.

Why Choose RCA Plumbing & Heating Services?

Based locally in Alloa, RCA Plumbing & Heating has been keeping Central Scotland warm and cosy since 2019. As Heat Geek accredited and MCS-certified specialists, we manage everything from the initial technical survey and heat loss calculations to grant support and precision commissioning.

Whether you need an upgrade from oil, a new high-efficiency boiler, a professional boiler service, or protection with our monthly service plans, our local engineers are here to help.

Under the Home Energy Scotland scheme, eligible homeowners receive up to £7,500 for an air source heat pump, with an additional £1,500 rural uplift increasing total funding to £9,000 in qualifying rural areas like Perthshire.

Yes. When sized correctly using room-by-room heat loss calculations and designed with proper low-flow hydraulic balancing, an air source heat pump delivers reliable heating and hot water throughout freezing Scottish winters.

You can contact RCA Plumbing & Heating or use our online survey form. We evaluate your existing setup, check your postcode eligibility for rural funding, and provide a full estimate with grant paperwork assistance.
